Vessel 50 ㎥

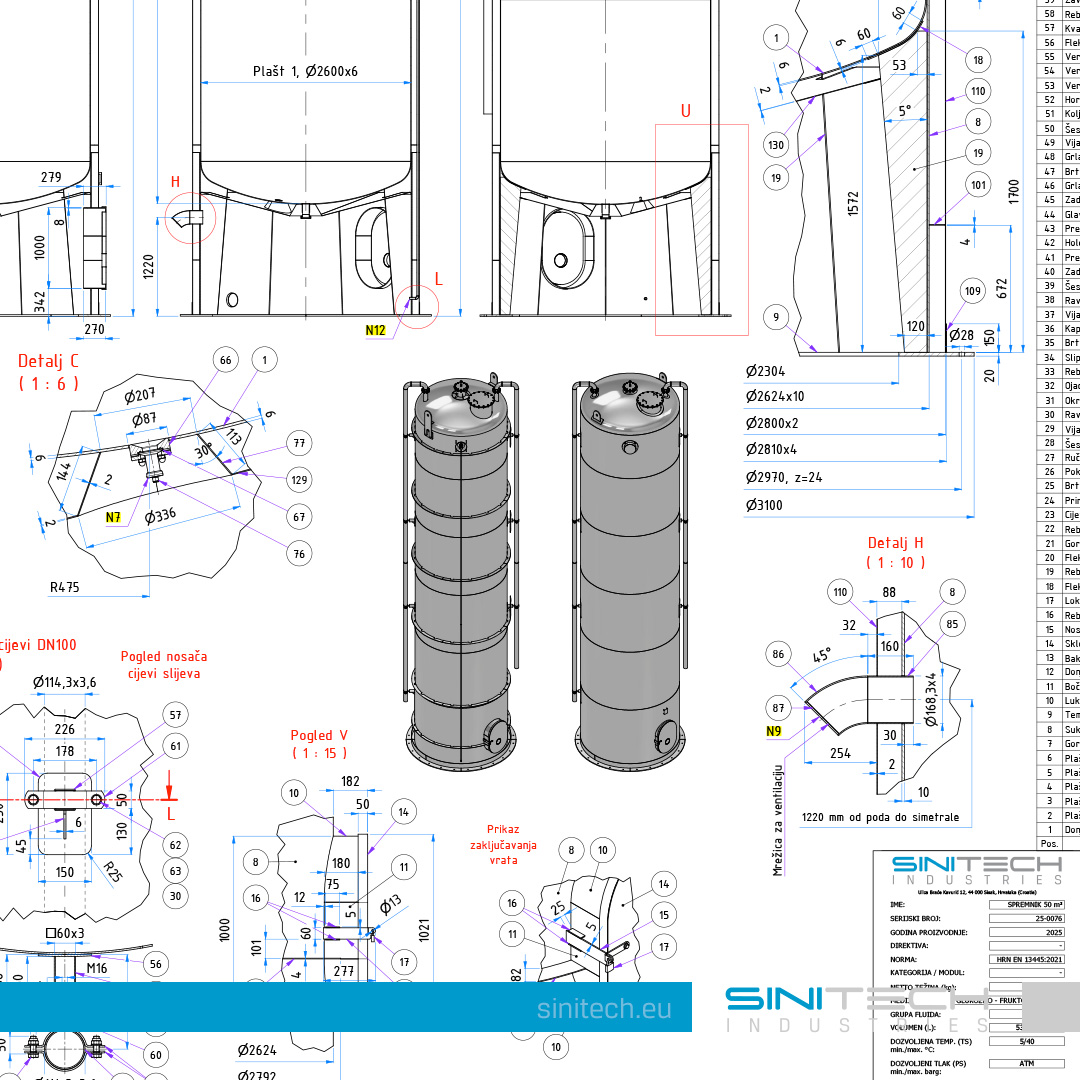

This project will take place from January 2026. to May 2026., and the project itself consisted of the design and manufacturing of process industry equipment. Equipment that we manufactured is one pcs. of 50 m³ heated, stainless steel vessels for storage of glucose-fructose syrup, with required pipelines and process automation. The installation of the equipment itself and commissioning was also part of our scope of work.

The material from which the vessels are made is stainless steel AISI316, and the full dimension of each vessel is approx. ⌀ 2600 mm x 12000 mm, eact vessel around 8,5t in weight.

Project scope:

• Design of Equipment and Automation
• Material purchase
• Process Equipment manufacturing
• Pressure test

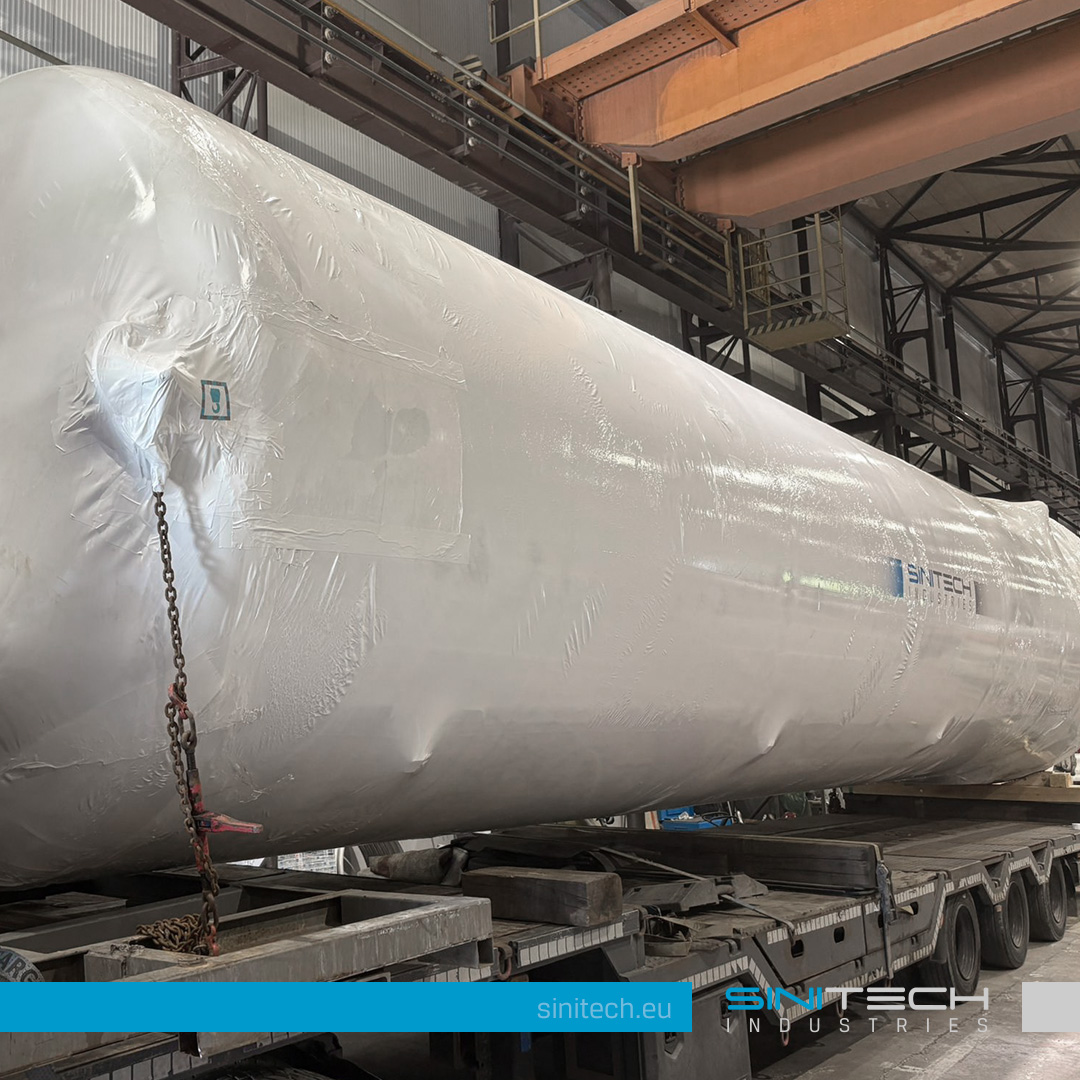

• Packing & Shipping of Equipment

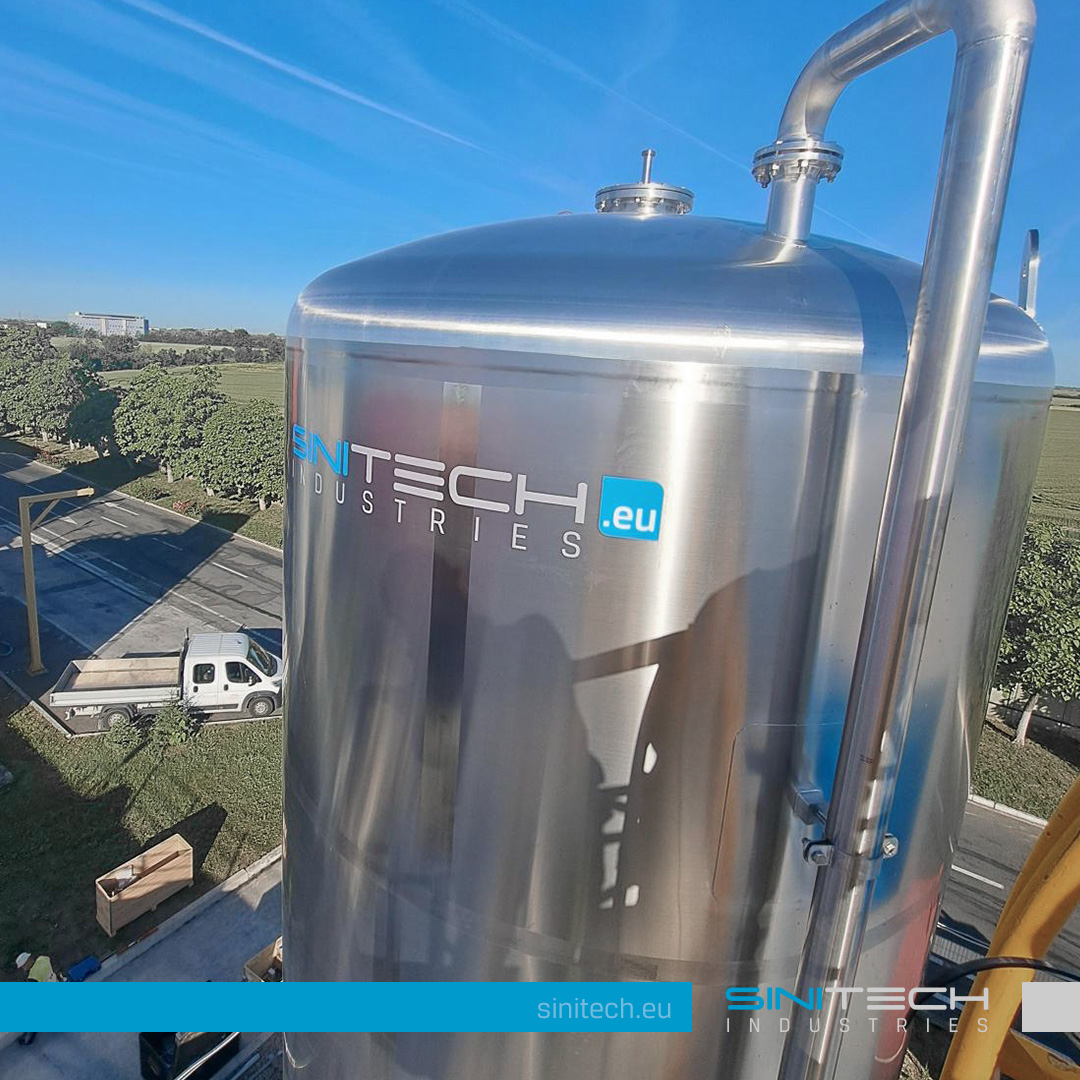

• Installation of Equipment
• Commissioning and testing

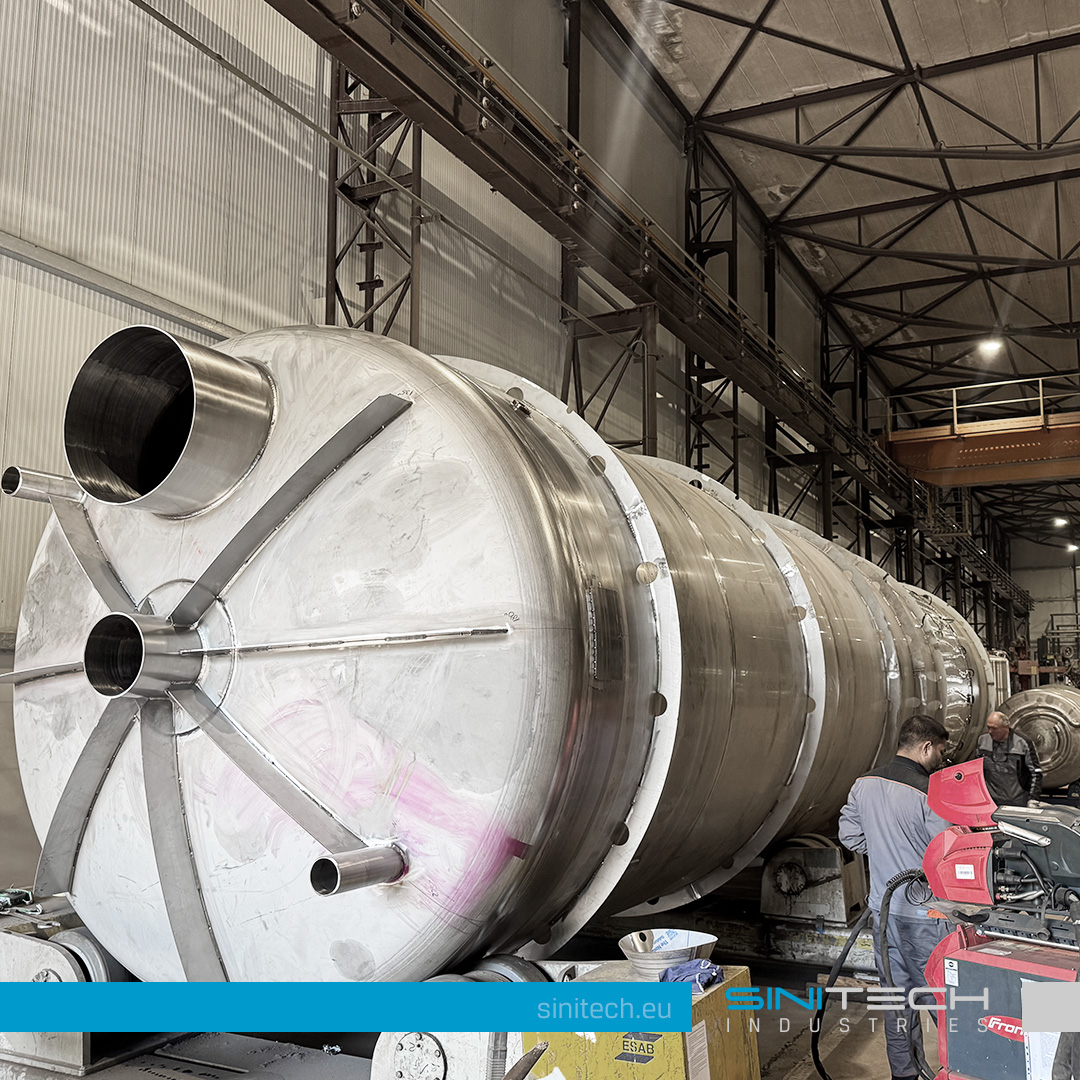

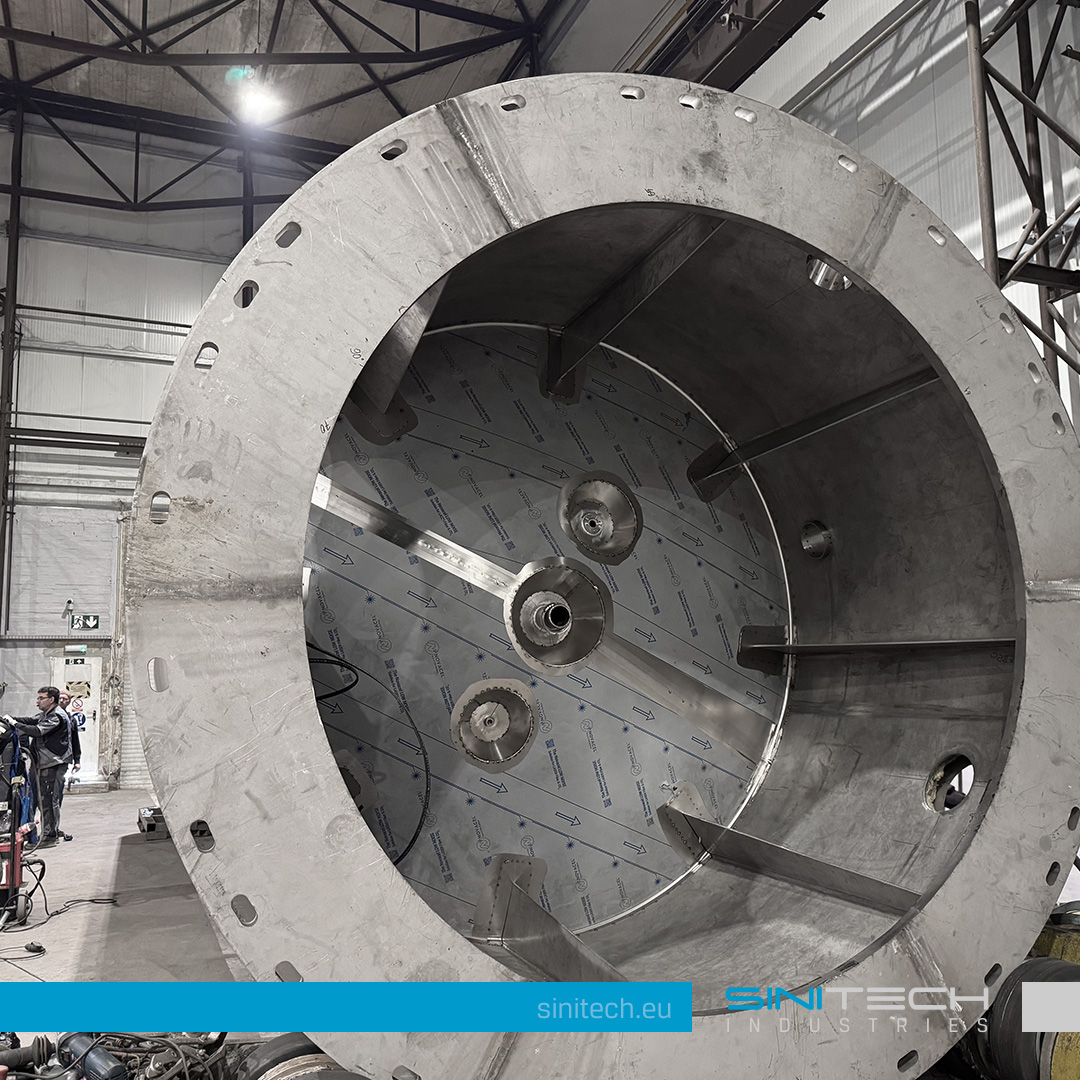

Project photos
