Evaporation units are critical components in various industrial processes, particularly in industries like chemical manufacturing, food processing, pharmaceuticals, and wastewater treatment. Should you go with TVR or MVR?

Mechanical Vapor Recompression (MVR) Evaporation Unit: A Comprehensive Advantage Over Thermal Vapor Recompression (TVR)

Among the most advanced and efficient types of evaporation units, Mechanical Vapor Recompression (MVR) and Thermal Vapor Recompression (TVR) systems are two prevalent technologies that are widely used today. Both systems work to enhance evaporation by reusing vapor energy, but MVR has proven to offer a more energy-efficient and environmentally friendly solution compared to its thermal counterpart.

In this blog post, we will delve into the advantages of MVR evaporation units compared to TVR, with a special focus on how Sinitech Industries has become a global leader in the design, development, and manufacturing of cutting-edge evaporation plants. With years of experience in providing solutions for multiple segments of the process industry, Sinitech Industries is at the forefront of delivering robust, energy-efficient, and innovative evaporation systems tailored to customer needs.

Understanding Evaporation Technology

Before diving into the detailed comparison of MVR and TVR, it is important to understand the basic principles of evaporation in industrial applications. Evaporation is the process of separating a solvent (usually water) from a solution by heating it until it vaporizes. This vapor is then condensed and can either be reused or discarded, depending on the application.

Types of Evaporation Systems

Single-Effect Evaporation: In a single-effect evaporator, vapor generated from the boiling solution is condensed and discarded, requiring continuous input of external heating, typically through steam.
Multiple-Effect Evaporation (MEE): A more energy-efficient alternative to single-effect evaporation, MEE units use the vapor generated from one effect to heat the next, thus conserving energy by reducing the need for fresh steam input.
Mechanical Vapor Recompression (MVR): This technology uses a mechanical compressor to recompress the vapor generated during evaporation, raising its pressure and temperature so it can be reused as a heat source to continue the evaporation process.
Thermal Vapor Recompression (TVR): TVR, on the other hand, uses a jet ejector driven by high-pressure steam to compress the vapor, allowing it to be reused as a heat source.

Both MVR and TVR are designed to improve the efficiency of evaporation by reusing vapor energy. However, MVR offers significant advantages over TVR in terms of energy efficiency, environmental sustainability, and operational flexibility, which we will explore in the following sections.

What is Mechanical Vapor Recompression (MVR)?

Mechanical Vapor Recompression (MVR) is an advanced evaporation technology that focuses on the reuse of energy. In an MVR system, the vapor generated from the evaporation process is compressed mechanically using a compressor or fan. The compression increases the pressure and temperature of the vapor, allowing it to be recycled and used as the heating medium for the evaporator, effectively reducing or eliminating the need for additional external steam.

Key Components of an MVR System:

Evaporator: The main unit where the solvent (often water) is vaporized from the feed solution.
Compressor or Fan: The mechanical component responsible for compressing the vapor to increase its pressure and temperature.
Heat Exchanger: Utilizes the recompressed vapor to heat the solution, driving further evaporation.
Condenser: Converts any excess vapor back into a liquid for collection or further use.

MVR systems are widely adopted due to their significant energy savings, especially in energy-intensive industries where large volumes of liquid need to be evaporated.

What is Thermal Vapor Recompression (TVR)?

Thermal Vapor Recompression (TVR) is another method of improving the energy efficiency of evaporation systems. In a TVR system, vapor generated from the evaporator is compressed using a jet ejector, which is driven by high-pressure steam. The resulting compressed vapor can be reused as a heating medium for the evaporation process.

Key Components of a TVR System:

Evaporator: The main unit where the solvent is vaporized.
Jet Ejector: Driven by high-pressure steam, the ejector compresses the vapor.
Heat Exchanger: The recompressed vapor is used to heat the solution and drive further evaporation.

While TVR offers energy savings compared to conventional single-effect evaporators, it still requires a substantial amount of high-pressure steam to function, which can limit its overall energy efficiency when compared to MVR.

Advantages of MVR over TVR

While both MVR and TVR are technologies designed to improve energy efficiency by reusing vapor, MVR offers a range of significant advantages over TVR. These benefits stem from MVR’s mechanical compression of vapor, which allows for greater energy savings, reduced environmental impact, and increased flexibility in operation.

1. Energy Efficiency

The most critical advantage of MVR over TVR is its superior energy efficiency. MVR systems rely on mechanical energy (electricity) to compress the vapor, whereas TVR systems use high-pressure steam. The mechanical energy required for vapor recompression in an MVR system is significantly lower than the thermal energy required to produce high-pressure steam in a TVR system.

Energy Savings: MVR systems can reduce energy consumption by up to 90% compared to traditional single-effect evaporators and are much more efficient than TVR systems. In many cases, an MVR unit can operate using only 5-10% of the energy that a TVR unit would require to achieve the same level of evaporation.
Reduced Steam Requirements: While TVR systems still require a continuous supply of high-pressure steam, MVR systems only need a minimal amount of startup steam (if any). Once in operation, MVR systems can often run solely on electricity, further reducing operational costs associated with steam generation and supply.

2. Lower Operating Costs

The high energy efficiency of MVR systems translates into lower operating costs. Since MVR systems rely more on electricity and less on high-pressure steam, plants using MVR technology can save significantly on fuel and steam production. In industries where steam generation is a major expense, this reduction in steam usage offers substantial cost savings over time.

Fuel Savings: Since less fuel is needed to generate steam, MVR systems reduce the consumption of natural gas, coal, or other fuels, lowering operational expenses.
Maintenance Costs: The mechanical components in MVR systems, such as compressors or fans, typically have lower maintenance requirements compared to steam systems used in TVR. This reduces the cost of upkeep and minimizes downtime due to maintenance.

3. Environmental Impact

MVR systems offer significant environmental advantages over TVR. Because MVR systems use electricity for vapor recompression, they reduce reliance on fossil fuels and high-pressure steam generation, leading to a lower carbon footprint.

Reduced CO2 Emissions: By reducing fuel consumption and the amount of steam required, MVR systems help lower greenhouse gas emissions. This is particularly important for industries aiming to meet stricter environmental regulations and sustainability goals.
Water Conservation: Since MVR systems require less steam, they also reduce water consumption. TVR systems rely heavily on steam, which often requires large quantities of water for both generation and cooling. MVR minimizes this requirement, making it a more water-efficient option.
Reduced Waste Heat: In TVR systems, excess steam is often released as waste heat, contributing to thermal pollution. MVR systems, on the other hand, recycle much of the vapor energy, significantly reducing the amount of waste heat released into the environment.

4. Flexibility and Scalability

MVR systems offer greater operational flexibility compared to TVR systems. MVR units can operate efficiently across a wide range of production scales and are well-suited for both small and large applications. Additionally, MVR systems can easily adapt to varying feed conditions, including fluctuations in temperature and composition.

Scalability: MVR systems can be scaled to meet the specific needs of different industrial applications. Whether used in small-scale operations or large, multi-effect plants, MVR can be adapted to meet the required evaporation rates without significant changes in energy consumption.
Adaptability to Low-Temperature Applications: MVR systems can operate at lower temperatures compared to TVR, which is beneficial for industries that require delicate handling of temperature-sensitive products, such as food and pharmaceuticals.

5. Reliability and Longevity

MVR systems tend to offer higher reliability and longer operational lifespans compared to TVR systems. The mechanical components used in MVR, such as compressors, are robust and less prone to wear and tear compared to the steam-driven components in TVR.

Longer Equipment Life: MVR units often experience less corrosion and scaling because they operate at lower temperatures and pressures compared to TVR systems. This leads to less frequent equipment replacement and longer system lifespans.
Fewer Downtime Issues: Due to the lower operational complexity and fewer moving parts in MVR systems, they tend to require less frequent maintenance and have fewer breakdowns, leading to reduced downtime and higher overall plant productivity.

6. Return on Investment (ROI)

While MVR systems may have a higher upfront capital cost compared to TVR systems, the significant energy savings, reduced operating expenses, and lower maintenance costs contribute to a faster return on investment. In many cases, industrial plants can recoup the initial cost of an MVR system within a few years, after which the ongoing cost savings continue to accrue.

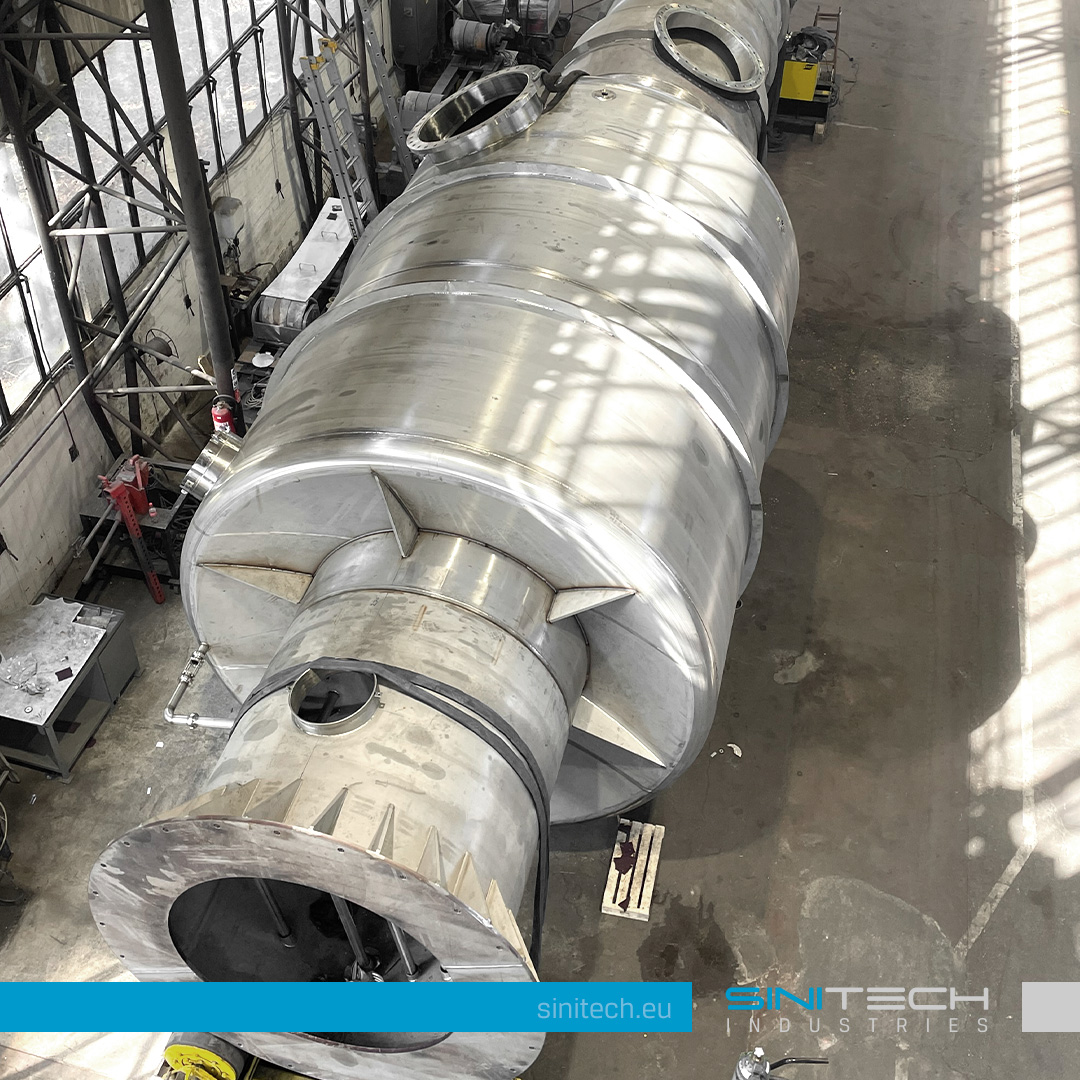

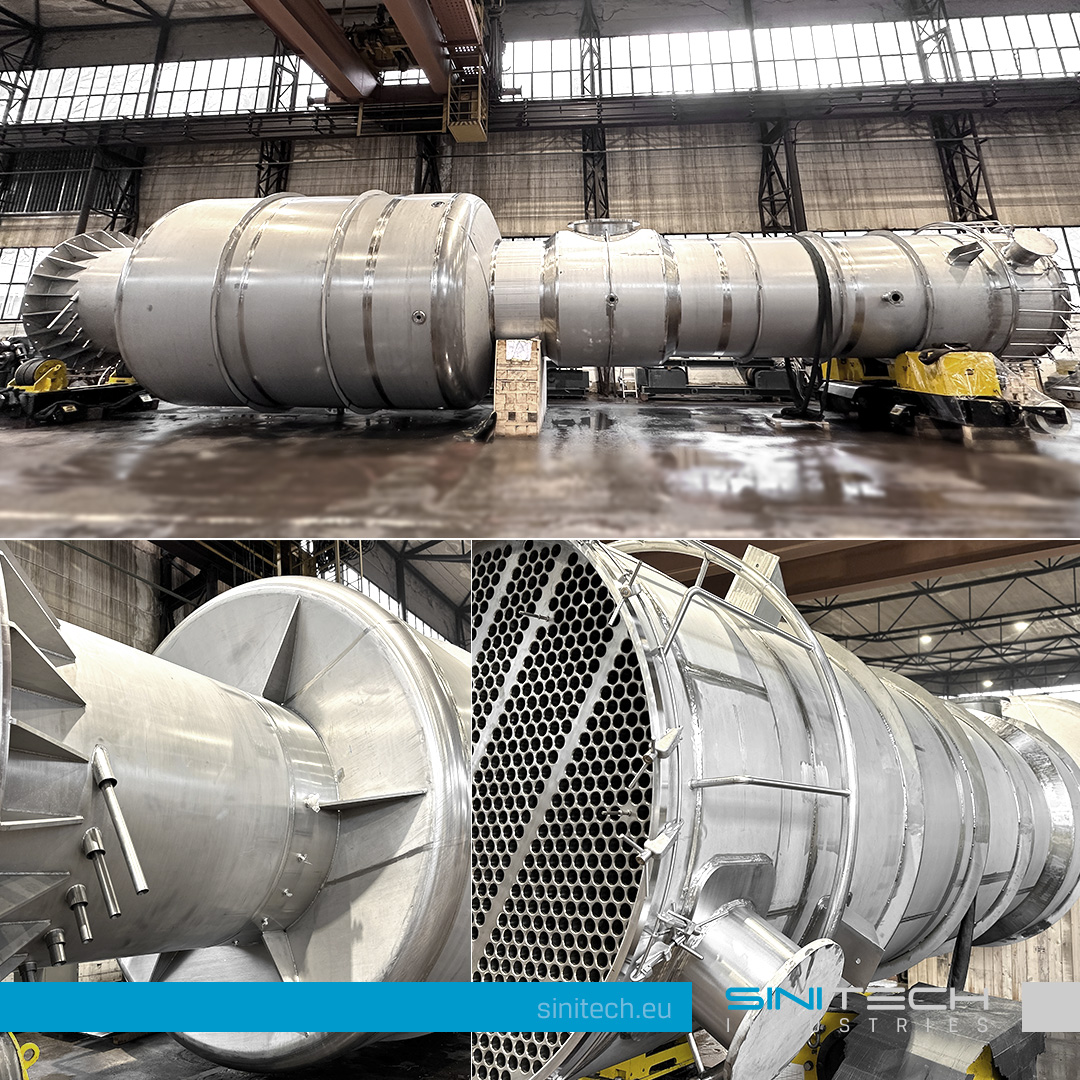

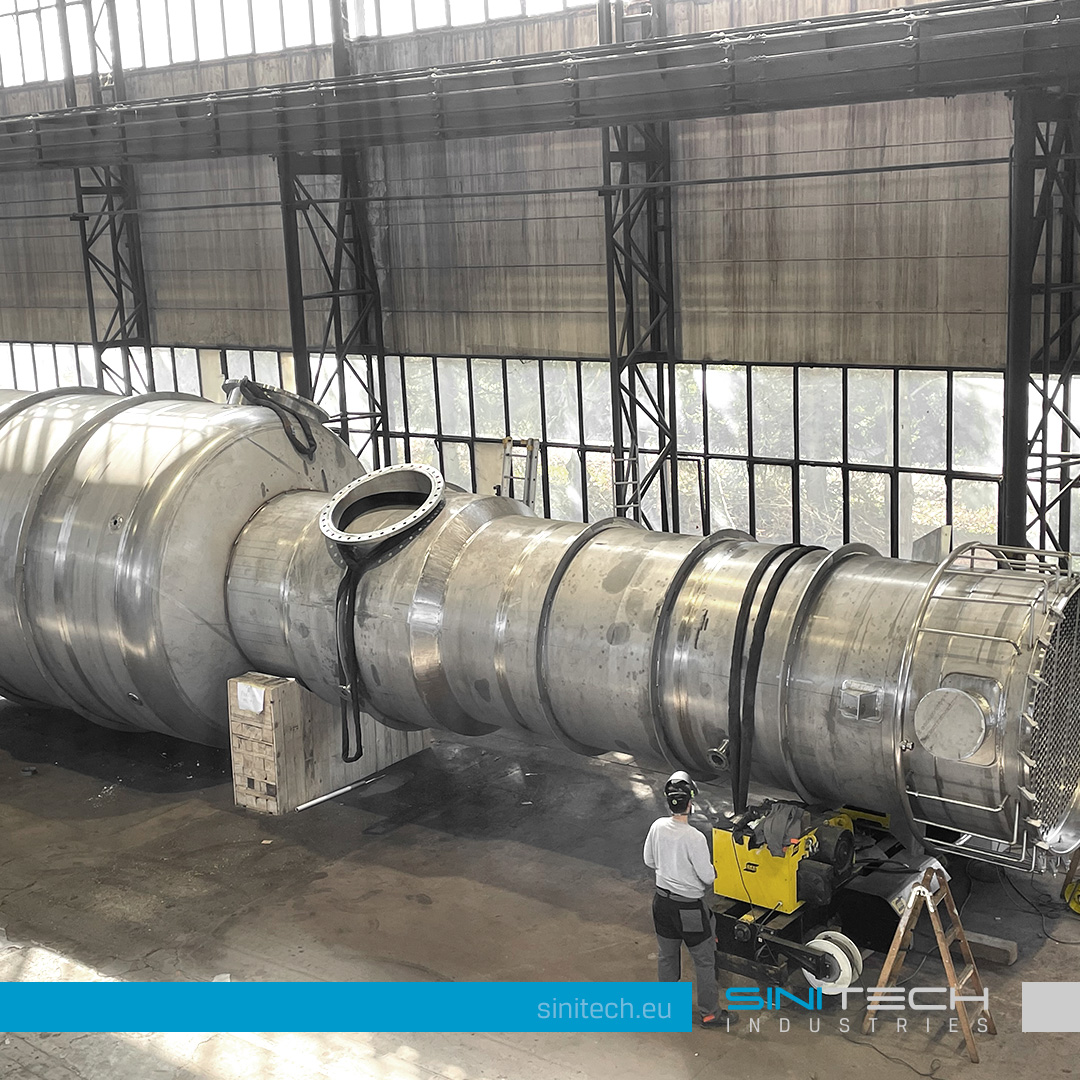

Sinitech Industries: Leading the Way in Evaporation Plant Design and Manufacturing

Sinitech Industries has emerged as a global leader in the design, engineering, and manufacturing of advanced evaporation systems, including MVR units. With a commitment to innovation, energy efficiency, and environmental responsibility, Sinitech Industries provides customized evaporation solutions for a wide range of industries, including chemical industry as well a food&beverage industry.
